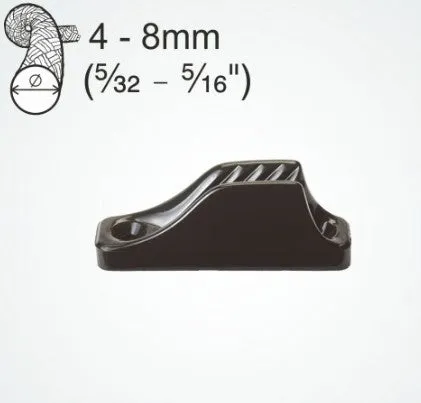

With the CL209 the rope drops down into the teeth to give a quick and positive lock that is easy to release. The cleat is maufactured from UV resistant plastic, making it cost effective and ideal for holding rope in an outdoor environment. Its simple design has lead to it being fitted on dinghies, kayaks to hold anchors and gym equipment.
Also available in Aluminium - see CL254 below. Using a CL803 Tapered Pad can aid rope alignment. A smaller cleat is the CL204. A larger cleat is CL201.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 4 - 8mm | 5/32 - 5/16" | |
| Material | Nylon | Nylon | |
| Hole Centres | 54mm | 2 1/8" | |
| Length | 73mm | 2 3/4" | |
| Width | 19mm | 3/4" | |
| Height | 26mm | 1 1/32 | |
| Bolt Size | M5 | No 10-24. 3/16" | |
| Screw Size | 4.5 | No 10 | |
| Weight | 20gms | 0.7oz |
